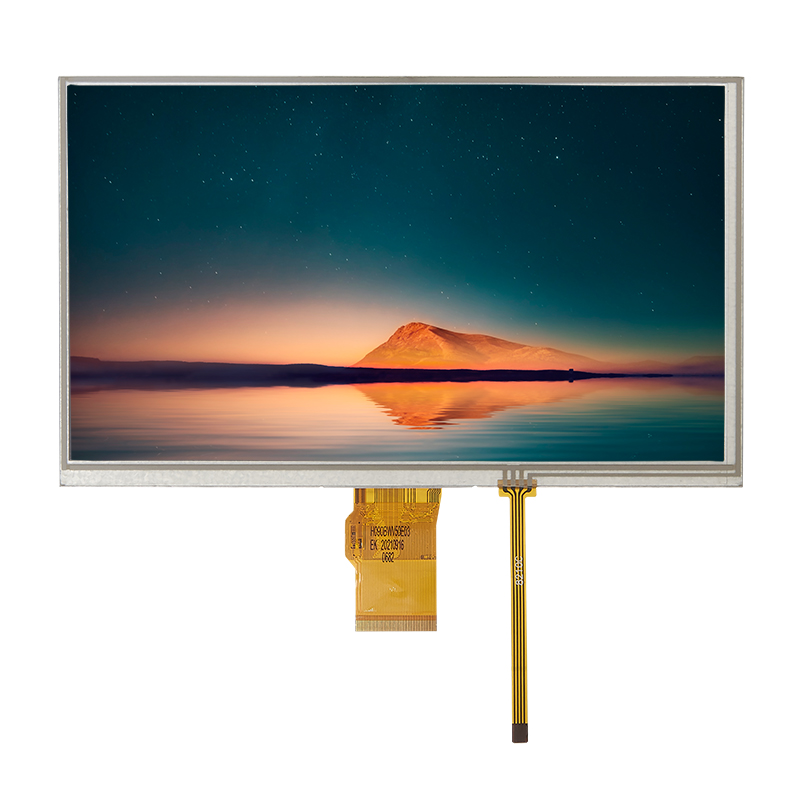

型號：H090BWV50E5004-T

尺寸：9 inch

分辨率： 800(RGB) × 480

接口方式：50pin 24Bit RGB

外觀尺寸（顯示區域）：210.6*126.5*3.5（198 x111.69）

亮度：350 nits

按需求定制

質量保障

品牌認證

在線咨詢

產品參數

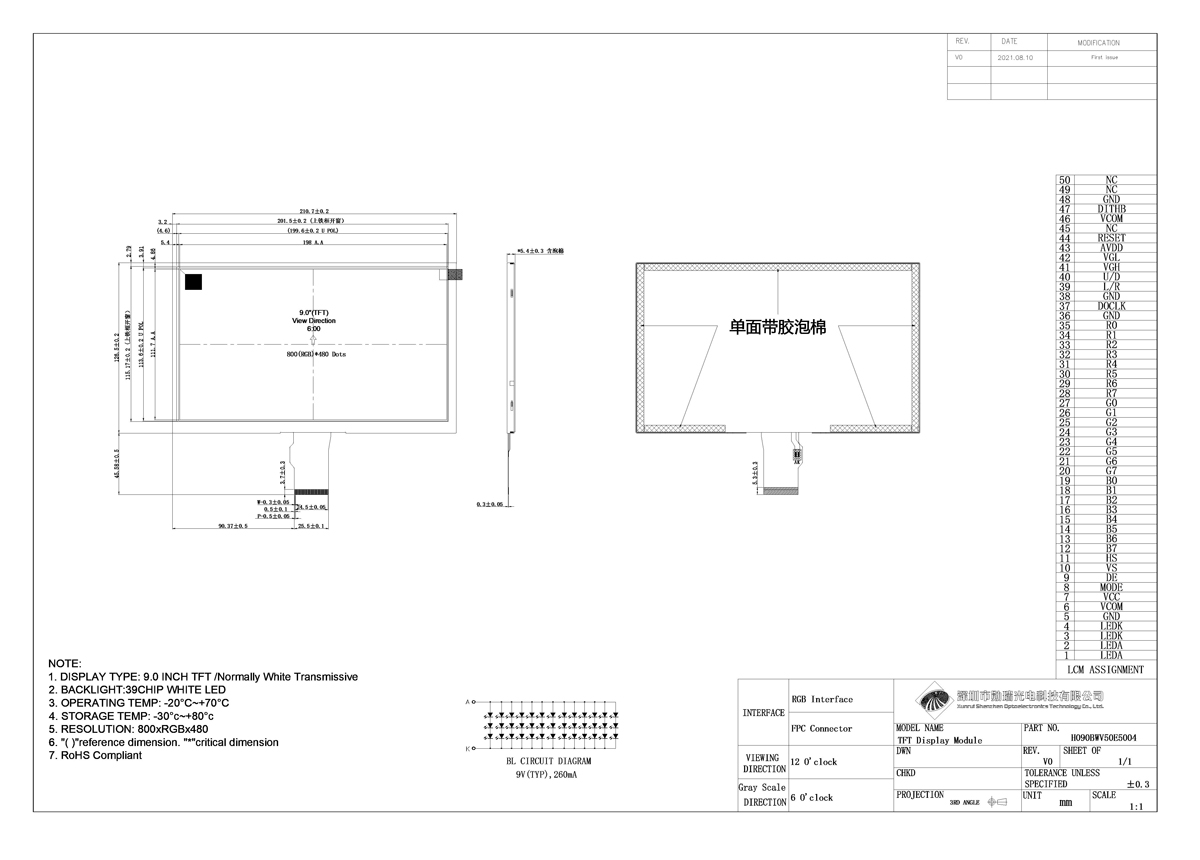

產品圖紙

尺寸、接口等規格均可定制，可配電容觸摸、電阻觸摸。如有其它規格需求請聯系我們，我們將竭誠為您服務。

一、產品參數：

Size	9 inch
Resolution	800× RGB × 480
Interface	RGB-24bit
Connect type	Connector
Color Depth	16.7M
Technology type	a-Si
Pixel pitch (mm)	0.0825(H) x 0.2327(V)
Pixel Configuration	R.G.B. Vertical Stripe
Display Mode	Normally White
Driver IC	TBD
Surface Treatment	3H
Viewing Direction	12 O’clock
View direction(Gray Inversion)	6 O’clock
LCM (W x H x D) (mm)	210.6126.53.5
Active Area(mm)	198 x111.69
With /Without TSP	With TSP
Weight (g)	TBD
LED Numbers	39 LEDs

二、產品接口定義：

No.	Symbol	Description
1,2	LEDA	Power for LED backlight (Anode)
3,4	LEDK	Power for LED backlight (Cathode)
5	GND	Power Ground
6	VCOM	Common voltage
7	VCC	Power for Digital Circuit
8	MODE	DE/SYNC mode select Note1
9	DE	Data Enable
10	VS	Vertical sync signal
11	HS	Horizontal sync Signal
12	B7	Blue data(MSB)
13	B6	Blue data
14	B5	Blue data
15	B4	Blue data
16	B3	Blue data
17	B2	Blue data
18	B1	Blue data Note2
19	B0	Blue data(LSB) Note2
20	G7	Green data(MSB)
21	G6	Green data
22	G5	Green data
23	G4	Green data
24	G3	Green data
25	G2	Green data
26	G1	Green data Note2
27	G0	Green data (LSB) Note2
28	R7	Red Data(MSB) Note2
29	R6	Red Data
30	R5	Red Data
31	R4	Red Data
32	R3	Red Data
33	R2	Red Data
34	R1	Red Data Note2
35	R0	Red Data(LSB) Note2
36	GND	Power Ground
37	DCLK	Pixel clock Note3
38	GND	Power Ground
39	L/R	Left/right selection Note4/5
40	U/D	up/down selection Note4/5
41	VGH	Gate ON Voltage
42	VGL	Gate OFF Voltage
43	AVDD	Power for Analog Circuit
44	RESET	Global reset pin Note6
45	NC	NO connection
46	Vcom	Common Voltage
47	DITHB	Dithering function Note7
48	GND	Power Ground
49	NC	NO connection
50	NC	NO connection
