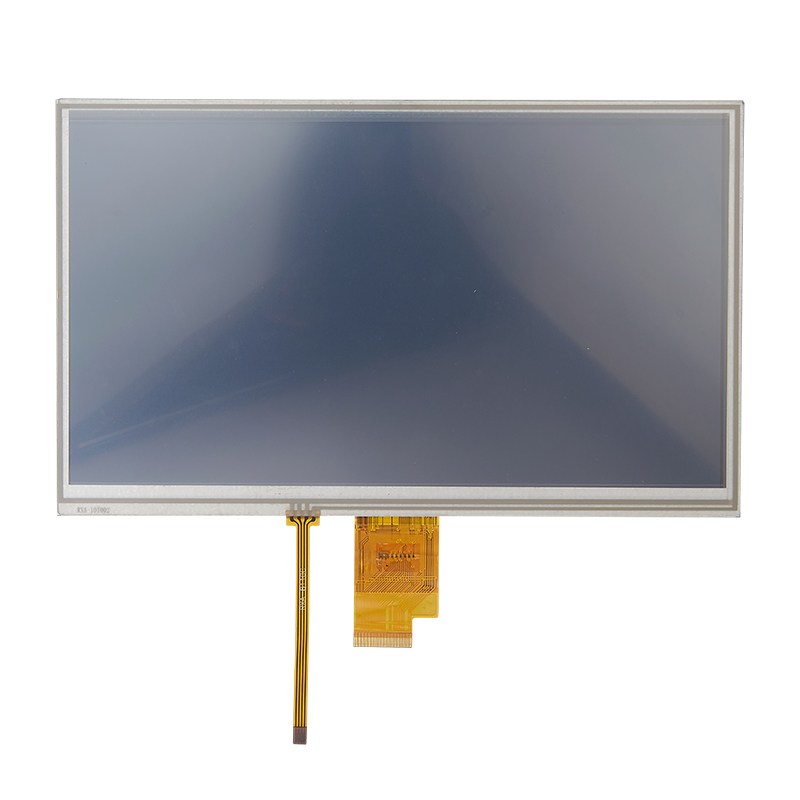

Resolution

1024(horizontal)*600(Vertical)

Interface

RGB

Connect type

Connector

Color Depth

16.7M

Technology type

a-Si

Display Spec. Pixel pitch (mm)

0.1695*0.1695

Pixel Configuration

R.G.B.-Vertical Stripe

Display Mode

Normally Black

Driver IC

Surface Treatment

HC

Viewing Direction

ALL

LCM (W x H x D) (mm)

235(W)×143(H)×2.8(D)

Active Area(mm)

222.72(H)x125.28(V)

With /Without TSP

Without TSP

Weight (g)

-

LED Numbers

24

1

VCOM

Common Voltage

2

VDD

Power Voltage for digital circuit

3

VDD

Power Voltage for digital circuit

4

NC

No connection

5

RESET

Global reset pin

6

STBYB

Standby mode Normally pulled high

STBYB=1,normal operation

STBYB=0,timing contrller,source

Driver will turn off,all output are High-Z

7

GND

Ground

8

RXIN0-

-LVDS differential data input

9

RXIN0+

+LVDS differential data input

10

 GND

Ground

11

RXIN1-

-LVDS differential data input

12

RXIN1+

+LVDS differential data input

13

GND

Ground

14

RXIN2-

-LVDS differential data input

15

RXIN2+

+LVDS differential data input

16

GND

Ground

17

RXCLKIN-

-LVDS differential clock input

18

RXCLKIN+

+LVDS differential clock input

19

GND

Ground

20

RXIN3-

-LVDS differential data input

21

RXIN3+

-LVDS differential data input

22

GND

Ground

23

NC

No connection

24

NC

No connection

25

GND

Ground

26

NC

No connection

27

DIMO

Backlight CABC controller signal output

28

SELB

6bit/8bit mode select                                 (Note 1)

29

AVDD

Power for Analog Circuit

30

GND

Ground

31

LED-

LED Cathode

32

LED-

LED Cathode

33

L/R

Horizontal inversion                              (Note 3)

34

U/D

Vertical inversion                                (Note 3)

35

VGL

Gate oFF Voltage

36

NC

37

NC

38

VGH

Gate ON Voltage

39

LED+

LED Anode

40

LED+

LED Anode
