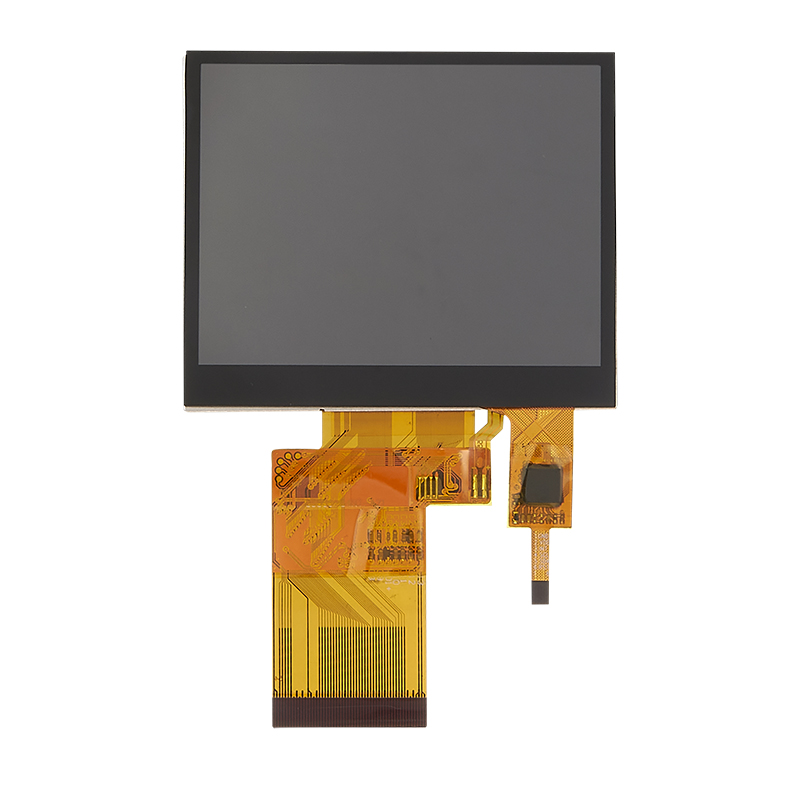

Resolution

320(horizontal)*240(Vertical)

Glass Maker

Tianma

Interface

24bit-RGB

Connect type

Connector

Display Colors

16.7M

Technology type

a-Si

Pixel pitch (mm)

0.219(RGB)(W) x 0.219 (H)

Pixel Configuration

R.G.B. Stripe

Display Mode

Normally White

Driver IC

NV3035

Luminance

350nits

Viewing Direction

12 O’clock

Gray Scale Inversion Direction

6 O’clock

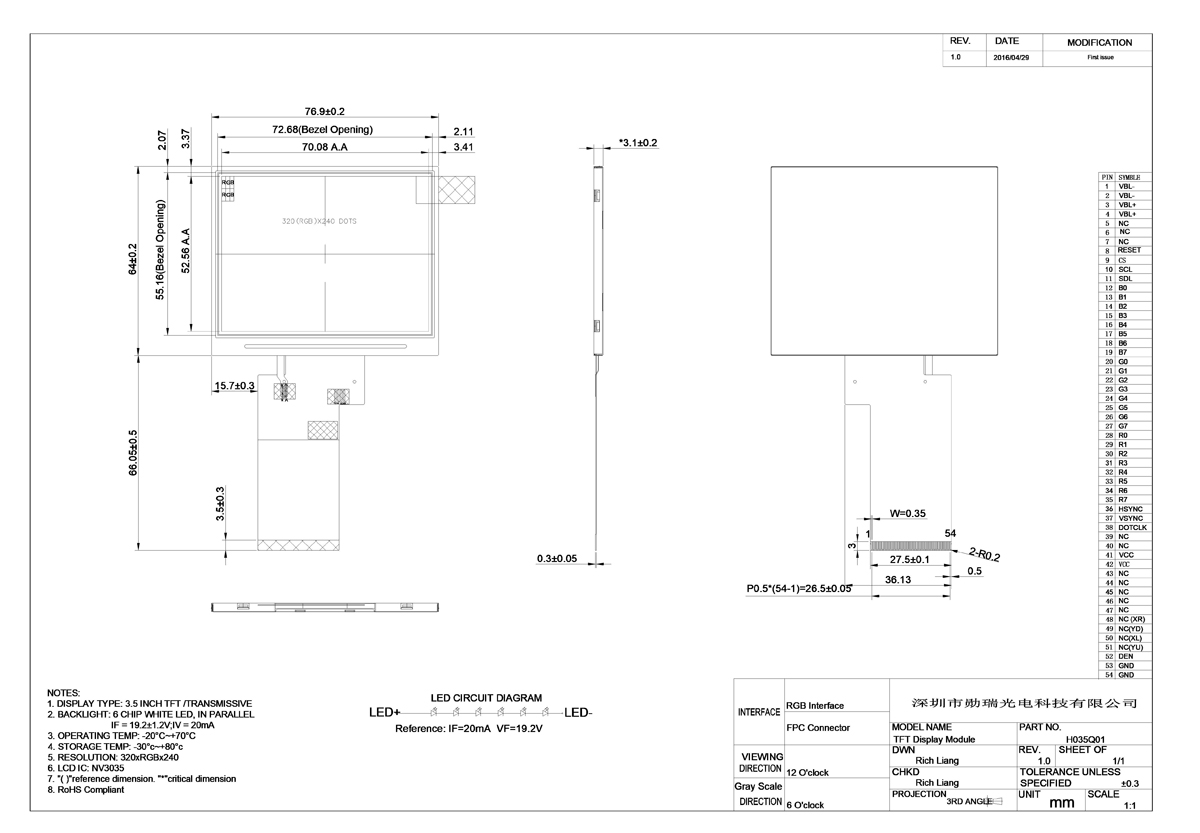

LCM (W x H x D) (mm)

76.90*64.0*3.1

Active Area(mm)

70.08 x 52.56

With /Without TSP

With CTP

Weight (g)

28g

LED Numbers

6LEDs (6S)

1,2

VBL-

Backlight LED Cathode

3,4

VBL+

Backlight LED Anode.

5~7

NC

NC

8

RESET

Reset Signal pin (“Low” is enable)

9

SPENB

Chip select

10

SPCK

Serial Clock.

11

SPDA

Serial Data

12-19

B0~B7

Data bus

20-27

G0~G7

Data bus

28-35

R0~R7

Data bus

36

HSYNC

Line Synchronous Signal

37

VSYNC

Frame Synchronous Signal

38

DOTCLK

Dot-clock signal and oscillator source

39-40

NC

NC

41-42

VCC

Power supply for logic operation

43-47

NC

NC

48

XR

Touch panel right side

49

YD

Touch panel bottom side

50

XL

Touch panel left side

51

YU

Touch panel up side

52

DEN

Display enable signal

53-54

GND

System Ground
